Examples Based on Newton's Laws of motion.

An army vehicle of mass 1000 kg is moving with a velocity of 10 m/s and is acted upon by a forward force of 1000 N due to the engine and a regarding force of 500 N due to friction. What will be it's velocity after 10 sec?

Solution

Examples related to Bowl Problem

Example on Conical Pendulum

Example based on Time Period and Frequency of Conical Pendulum.

Example based on Radius of Circular path of Conical Pendulum

Find Angular Frequency? Motion In plane (Vertical Circular Motion)

Question

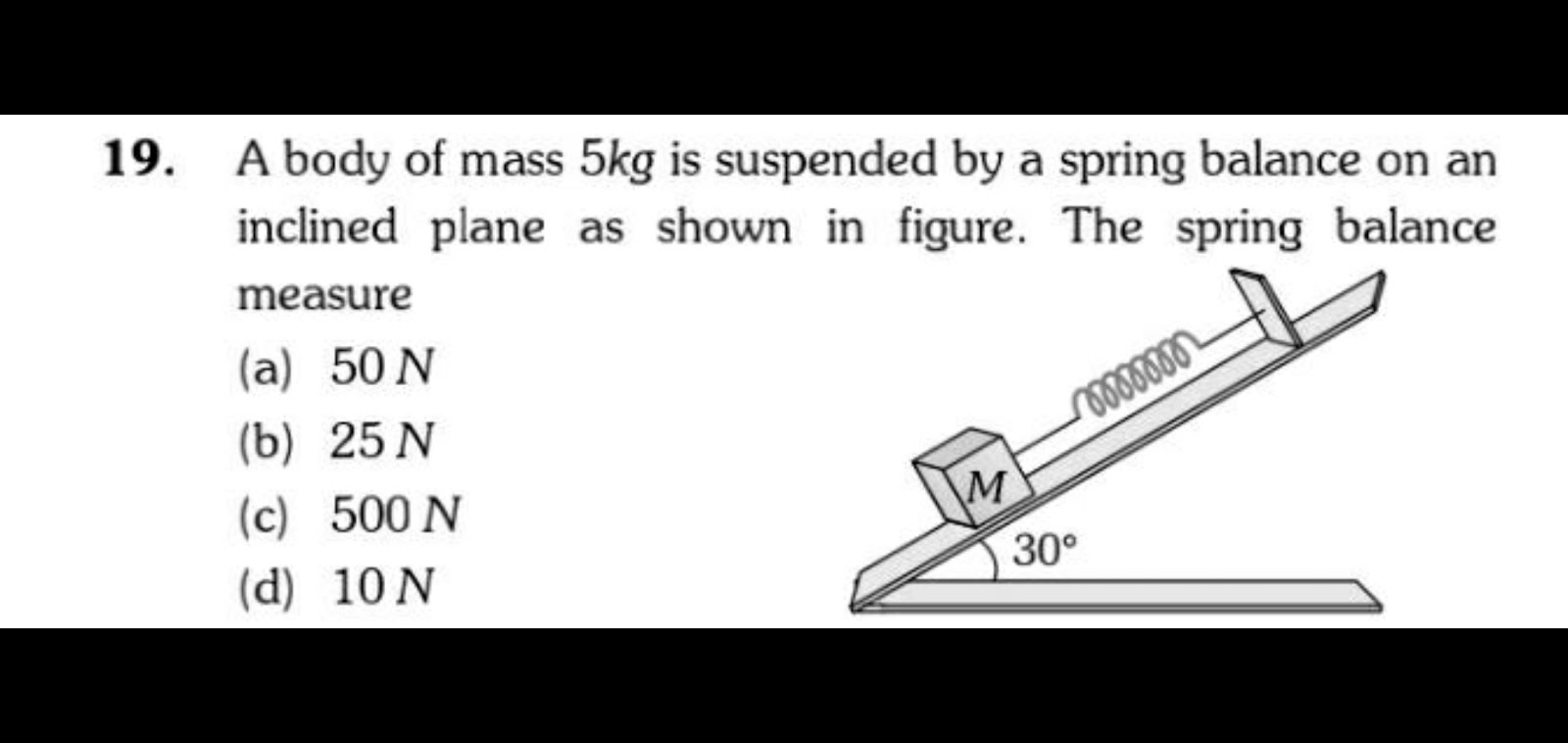

A body of mass 5 kg is suspended by a spring balance on an inclined plane as shown in figure. The spring balance measures______

#physics #jee #iit #neet #mhtcet #nlm

Solution

Bowl Problem | Motion In plane |

Question

Find the height from the centre of bowl, the block of mass 1kg leaves from bowl surface. What is the  speed of block at this instant. [ friction between bowl and block is o] R= 9m ; g = 10 m/s² .

Click for Solution

A block is kept at the top of the hemispherical bowl, fricition between the block and bowl is zero so block slides down. Find the angle and velocity of block at which block leaves the surface of bowl?

Wave Optics

 Wave Optics -:

• Wave optics describes the relation between waves and rays of light.
•  According to wave theory of light, the light is a form of energy which travels through a medium in the form of wave motion.
• The speed of light in a medium depends upon the nature of medium.
• Wave Optics also known as Physical Optics.
• It is based on the wave theory of light, which was first proposed by Dutch physicist Christiaan Huygens in 1678.
•  Wave optics is used to study the propagation of light, and to understand how it interacts with matter.

Wave Optics Theories

1. Theory of diffraction

2. Maxwell Electromagnetic Theory

3. Fresnel equations

4. Huygens’ principle

5. Theory of interference

Theory of diffraction

The theory of diffraction is used to explain the behavior of light when it hits to an obstacle. When light waves hits to an obstacle, they are scattered in all directions. The amount of scattering depends on the size and shape of the obstacle. This Scattering of light is a kind of Diffraction.

Theory of interference

The theory of interference is used to explain the behaviour of light when it encounters two or more obstacles. When light waves encounter two or more obstacles, they interact with each other and create a pattern of light and dark regions.

Huygens’ principle

Huygens’ principle is used to explain the behavior of light when it encounters a reflecting surface. When light waves encounter a reflecting surface, they are reflected in a direction that is perpendicular to the surface. It explained reflection using the wave nature of light.

Fresnel equations

The Fresnel equations are used to calculate the amount of light that is reflected from a reflecting surface. The equations take into account the angle of incidence, the refractive index of the material, and the thickness of the reflecting surface.

Maxwell Electromagnetic Theory

The Maxwell Electromagnetic Theory is used to explain the behavior of light in all situations. The theory takes into account the electric and magnetic fields that are associated with light waves.

Newton’s Corpuscular Theory Light

It consists of very small invisible elastic particles which travel in vacuum with a speed of 3 x 108 m/s. The theory could explain reflection and refraction. The size of corpuscular of different colors of light are different. It could not explain interference, diffraction, polarization. photoelectric effect and Compton effect. The theory failed as it could not explain why light travels faster in a rarer medium than in a denser medium.

Structure Of Atom : Chemistry Notes



Structure Of Atom

Atom -

As per the John Dalton's proposal in 1808 that the atom is the smallest indivisible particle of matter.

Atomic Radii -

Atomic radii are of the order of 10–8 cm (1Å) and radii of nuclei are nearly 10–13 cm.

Radius of atom Radius of nucleus.

Electron -

1. Electron was discovered through the study of Cathode rays (discovered by Zulius Plucker) and the name was proposed by Stoney.
2. Charge of electron : It was determined by Mullikan by oil drop method as –1.602 × 10–19 coulombs or 4.803 × 10–10 e.s.u
3. Mass of electron : It was found by J. J. Thomson as 9.11 × 10–28 g.
4. Specific charge of electron : e/m ratio is called specific charge and was determined by Thomson as 1.76 × 108 coulombs/gm
5. Radius of electron : It is of the order 10–15 cm.
6. Density of electron : 2.17 × 1017 g/cc.
7. Mass of electron at speed v is m =
8. Atomic mass unit of electron : It is 0.0005486 amu
9. Mass of one mole of electron : It is 0.55 mg

Cathode Rays -

• Cathode rays originated from cathode. And an Electrons were discovered by cathode ray experiment
• Cathode rays cast shadow of the object in their path.
• Cathode rays Rotate a mica wheel.
• Cathode rays are Deflected by electric and magnetic fields in a direction showing negative charge.

Proton -

Proton is discovered by Goldstein (1886) through perforated cathode rays experiment which showed the presence of anode or canal rays.

1. Mass of Proton: It was found to be 1.672 × 10–24 g or 1.672 × 10–27 kg or 1.00728 amu. It is about 1837 times heavier than an electron.
2. Charge of Proton: It carries unit positive charge 1.602 × 10–19 coulombs or 4.803 × 10–10 esu.
3. Specific charge of Proton : It is 9.58 × 104 coulomb/gm. It varies with nature of gas and is maximum if H2 is used.
4. Charge on 1 mole of proton is 96500 coulomb or 1 Faraday.
5. Volume : The volume  for proton is approximately 1.5 × 10–38 cm3.

Neutron -

It is discovered by Chadwick by bombarding Be or B atoms (sheet) with high speed -particles

1. Mass of Neutron: Mass is 1.675 × 10–24 gm or 1.675 × 10–27 kg or 1.00866 amu.
2. It is heavier than proton by 0.18%.
3. Density of Neutron : Density is 1.5 × 1014 g/cm3.
4. Specific Charge of Neutron is ZERO.
5. Stability of Neutron : It is least stable of all elementary particles present in an atom
6. Disintegration of Neutron : Isolated neutron is unstable and disintegrates into electron, proton and neutrino.
7. Among all elementary particles neutron is the heaviest and least stable.

SETS, RELATIONS AND FUNCTIONS: Notes

SETS, RELATION AND FUNCTIONS

• Click here for IIT JEE, CET and Other Entrance Exams Based on Set, Relation and Functions

DEFINITION OF A SET:

A well defined collection of distinct objects is called a SET.

The members of a set are called its ELEMENTS.

The sets are generally denoted by capital letters A, B, C...., X, Y, Z.

The elements of a set are generally denoted by small letters a, b, c,....., x, y, z.

If x is an element of the set A, we write x∈A

If x is not an element of the set A, we write as

A well defined collection is such that given an object, it is possible to determine whether the object belongs to the particular collection or net, for example, the collection of all officers in the Post office, the collection of all subject taught to students of class X, collection of all IT companies.

On the other hand, the collection of all intelligent students in a class, the collection of all tall girls in a senior secondary school, the collection of all difficult questions asked in Mathematics, Physics and Chemistry in NEET 21 are not sets, since the words intelligent, tall, difficult are not well defined.

DESCRIPTION OF A SET

A set can be represented by either of the following two methods :

ROSTER METHOD OR TABULAR FORM

In this method a set is represented by listing all its elements separated by commas within {} For example,

·    The set V of vowels in English alphabet is V = {a, e, i, o, u}

·     The set E of even natural numbers is E = {2, 4, 6, 8,......}

·     The set of letters forming the word SCHOOL is {S, C, H, O, L}

PROPERTY METHOD OR SET BUILDER FORM

In this method, a, set is represented by stating a rule or a set of rules, which are satisfied by all the elements of the set and not by any other element outside the set. In general, we write S = { x : P (x)}

Which means that S is a set of elements, which satisfy the condition P(x).

[The symbol : or | is read as “such that”]

For example

V = { x : x is a vowel in the English alphabet}

E = {x : x is an even natural number}

A = { x : x is a letter of the word SCHOOL}

B =  {x : x is a factor of 40, x ∈ N} = {1, 2, 4, 5, 8, 10, 20, 40}

TYPES OF SET

1. EMPTY SET OR NULL SET OR VOID SET

A set which does not contain any element is called the empty set.

A null set is denoted by φ or {}.

For example:

•  C = {x : x is an even prime number greater than 2}
•   D = {x : x is a married bachelor}

2. SINGLETON SET

A set containing only one element is called a singleton set.

For example:

•  A = {4}.
• C = {a}.
•  D = { x : x+4 = 0, x∈I}.
•  {0} is a singleton set.
•    φ is a void set but {φ} is a singleton set.

3. FINITE AND INFINITE SETS

A set which is empty or consists of a definite number of elements is called FINITE. If a set A consists of n distinct elements then we write n (A) = n or O (A) = n It is called the CARDINAL NUMBER, or CARDINALITY or ORDER of the set A. The cardinality of a void set is zero and the cardinality of a singleton set is 1. Other examples of finite set, are

• Set A of days of the week, n (A) = 7
•  Set V of vowels in English alphabet, n(V) = 5
• Set M of all men is the world, n (M) may be a quite big number but it is a finite number although we do not know the exact number of elements in M.

INFINITE SET

A set whose elements cannot be counted is called an INFINITE SET.

For example,

N : the set of natural number = { 1,2,3.........}

Z or I : the set of integers = { ......., –3, –2, –1, 0, 1, 2, 3,....}

R⁺ : the set of positive real numbers

Q⁺ : the set of positive rational numbers

I⁺ : the set of positive integers

4. EQUAL AND EQUIVALENT SETS

Given two sets A and B. If every element of A is also an element of B and vice versa, the sets A and B are said to be equal and we write A = B. Clearly, A = B, if they have exactly the same elements.

(The symbol '⇒' stands for 'implies that')

For example:

• Let A ={1, 4, 5} and B = {4, 1, 5}, then A = B
• Let A = { x : 2  x 6, } and B = {2, 3, 4, 5, 6} then A = B
•  Let A = { x : x is a prime number number less than 6} and B = {x : x is a prime factor of 30}, then A = B
•  Let A = { x : x is a letter of the word ALLOY} and B = {x : x is a letter of the word LOYAL} then A = B
•  Let A = {1, 2}, B = {1, 2, 2, 1} and C = { x : x² – 3x + 2=0} then A = B = C.

Two finite sets A and B are said to be EQUIVALENT if they have the same number of elements, i.e. n(A) = n(B). We write A≈B

All equal sets are equivalent but all equivalent sets are not equal.

For example:

•  A = {a, b, c} and B = {10, 20, 30} then A≈B  but A≠B.
• then A≈B  but A≠B.
• { x : x² –16 = 0, } and B = {x : x–16=0, } then A≈B as well as A = B.

SUBSETS

If every element of a set A is also an element of a set B, then A is called a subset of B or A is contained in B and we write AϹB. [The symbol Ϲis read as “a subset of” or “contained in”]

Thus AϹB if x ∈ A ⇒ x ∈ B

If AϹB, then we also say that B is a SUPERSET of A and we write BϽA (read as "B contains A").

THEOREMS

·



i.e. null set is subset of every set

·

 i.e. every set is subset of itself

For any set A, φ and A are called IMPROPER SUBSETS. All other subsets of A are called PROPER SUBSETS. If B is a proper subset of A, we write BϹA.  [The symbol Ϲ is read as “ is a proper subset of”]

•  For two sets A and B




[The symbol ↔is read as “if and only if” also written as iff or sometimes “implies and implied by”]

•  A finite set containing n elements has 2ⁿ subsets. However the number of proper subsets is        2ⁿ – 2.

Examples :

• If A = {2, 3, 4} and B = {1, 2, 3, 4], then

• If A = {a, b, c} then n (A) = 3. Hence A has 2³ = 8 subsets, viz, φ; {a}; {b}; {c}; {a, b}; {b, c}; {c, a}; {a, b, c}. φ and {a,b, c} = A are improper subsets. All other are proper subsets
•
•
•
•
• The set of irrational numbers, denoted by T, is composed of all other real numbers. Thus              T = {x : x ∈ R and x ∉ Q}, i.e., all real numbers that are not rational. Some of the obvious relations among these subsets are: N ⊂  Ζ ⊂ Q, Q ⊂ R, T ⊂ R, N ⊄ Τ.

INTERVALS AS SUBSETS OF R

Let a, b ∈ R and a < b. Then the set of real numbers {y : a < y < b} is called an open interval and is denoted by (a, b). All the points between a and b belong to the open interval (a, b) but a, b themselves do not belong to this interval.

The interval which contains the end points also is called closed interval and is denoted by [a, b]. Thus [a, b] = {x : a ≤ x ≤ b}.

We can also have intervals closed at one end and open at the other, i.e.

[a, b) = {x : a ≤ x < b} is an open interval from a to b, including a but excluding b.

(a, b] = {x : a < x ≤ b} is an open interval from a to b including b but excluding a.

These notations provide an alternative way of designating the subsets of set of real numbers. For example, if A = (–3, 5) and B = [– 7, 9], then A ⊂ B. The set [0, ∞) defines the set of non-negative real numbers, while set (– ∞, 0) defines the set of negative real numbers. The set (-∞, ∞) describes the set of real numbers in relation to a line extending from -∞ to ∞.

On real number line, various types of intervals described above as subsets of R, are shown in the following figure :





Here, we note that an interval contains infinitely many points.

For example, the set {x : x ∈ R, – 5 < x ≤ 7}, written in set-builder form, can be written in the form of interval as (–5, 7] and the interval [– 3, 5) can be written in set-builder form as {x : – 3 ≤ x < 5}.

The number (b – a) is called the length of any of the intervals (a, b), [a, b], (a, b] or [a, b). The intervals (a, b] and [a, b) are also referred as semi-closed (or semi-open) intervals.

POWER SET

Let A is a given set. The collection of all the subsets of the set A is called the power set of A. It is denoted by P(A).

Hence, P(A) = {S : SA}

For example : If A = {a, b, c} then

P(A) = {φ, {a}, {b}, {c}, {a,b} {b,c} {c,a} {a, b, c}}

Clearly if A is a finite set and n(A) = m, then n (P(A)) = 2m

UNIVERSAL SET

A set, which contains all sets under consideration as subsets is called the universal set. It is denoted by U. The choice of universal set is not unique. Different universal sets are used in different contexts.

COMPARABLE SETS

Two sets A and B are said to be comparable if .

VENN  DIAGRAM

Most of the relationship between sets can be represented by means of diagrams called Venn diagrams. In the Venn diagram the universal set U is represented by the interior of a rectangle. Other sets under consideration are represented by the interior of circles drawn inside the rectangle. If a set A is a subset of a set B then the circle representing A is drawn inside the circle representing B.

OPERATIONS  ON  SETS

UNION  OF  SETS

Let A and B be two sets. The union of A and B is the set of all those elements which belong to A or B or A and B both. Symbolically we write A∪B which is read as “A union B” Thus

A∪B = {x : xA or xB} or x  A∪B x A or x B

Also,

In the Venn diagrams the shaded regions represent the union of sets A and B in different cases

The union of  a number of sets A1, A2, A3, .........An, i.e. A1∪A2∪A3∪.......∪An is represented by

For example :

• If A = {1,2,3}; B={2,3,4,5}. Then A ∪ B = {1,2,3,4,5}
• If A = {a, e,i,o,u}; B= {e,o,u}. Then A ∪ B = {a, e,i,o,u}
• If A = {1,2}; B = {a,b,c} Then A ∪ B = {1,2,a,b,c}
• If A {x : x ∈ I+}; B{x : x ∈ I and x < 0} ;

Then A ∪ B { ..........4, 3, 2, 1, -1, -2, -3,....} =

ALGEBRA OF UNION

Let A, B, C be any three sets defined in the universal set U, then

1. Idempotent Law : A ∪ A = A
2. Commutative Law : A ∪ B = B ∪ A
3. Associative Law : (A ∪ B) ∪ C = A ∪ (B ∪ C)
4. Identity Law :  (i) A ∪ φ = A, (ii) A ∪ U = U

INTERSECTION  OF  SETS

Let A and B are two sets. The intersection of the sets A and B is the set of all those elements which belong to both A and B. Symbolically, we write A∩B, which is read as “A intersection B” Thus, A ∩ B = {x : x ∈ A and x ∈ B} or x ∈ A ∩ B ⇒x ∈ A and x ∈ B

Also, .

In the following Venn diagrams, the shaded regions represent the intersection of sets A and B in different cases.

The intersection of a number of sets A1, A2, A3, ....., An i.e. A1∩ A2∩ A3∩..............∩ An is represented by .

For example :

• If A = {2,4,7,10} and B = {1, 2, 3, 4}, Then A∩B = {2,4}
• If A =   {x : x is a prime number} and B = {x : x ∈ N}

Then A∩B = {x : x is a prime number} = A. [Note that A ⊂ B]

• If A = {1,3,5,7,9,......};  B = {2,4.6,8,.....}, Then A ∩ B = φ.

ALGEBRA OF INTERSECTION

• Idempotent Law : A∩A = A
• Commutative Law : A∩B = B∩A
• Associative Law : (A∩B)∩C = A∩ (B∩C)
• Identity Law : (i)  A∩φ = φ, (ii)  A∩U = A
• Distributive law : (i) A∪(B∩C) = (A∪B) ∩ (A∪C)   (ii) A∩(B∪C) = (A∩B) ∪ (A∩C)

DIFFERENCE  OF  SETS

Let A and B are two sets. The difference of the sets A and B, in this order, is the set of elements which belong to A but not to B. Symbolically, we write A – B and read as “ A difference B” Thus, A – B = { x : x ∈ A and x ∉ B}. Similarly, B – A = { x : x ∈ B and x ∉ A}. In the Venn diagram, A – B and B – A are shown by shaded regions.

For example :

If A = { 1, 2, 3, 4} and B = { 3, 4, 5, 6}, Then A – B = {1, 2} and B – A = {5, 6}. We note that A – B B – A

Notes:

• A⊆A∪B
• B ⊆ A ∪ B
• A∩B⊆A
• A∩B⊆B
• If A⊆B, then (a) A∪B = B,  (b) A∩B = A
• If A∩B = φ, then A and B are called DISJOINT SETS
• If A∩B ≠ φ, then A and B are called OVERLAPPING SETS.
• A – B⊆A, B – A ⊆ B
• A⊆BA – B = φ
• A – B ≠ B – A
• A – B = A – (A∩B)
• A – φ = A and A – A = φ
• A – (A – B) = A  B
• A – B = B – A  A = B
• A – B, B – A, A∩B are pairwise disjoint.

SYMMETRIC  DIFFERENCE

If A and B are two sets, then the set, (A – B) ∪ (B – A) is called the symmetric difference of A and B and is denoted by A Δ B or A ⊕B

∴ A Δ B = {x : x ∈ A and x ∉B or x ∈ B and x∉A} = {x : x∉A∩B}

In the Venn diagram the shaded area represents A Δ B

For example :

Let A = {1, 2, 3} and  B = {2, 3, 4, 5} then

A – B = {1} and B –A = {4,5}

∴ A Δ B = (A–B) ∪ (B–A) = {1, 4, 5}

COMPLEMENT OF A  SET

Let U be the universal set and A is a subset of U. The complement of the set A, denoted be A’ or Ac is the set of all those elements of U which are not the elements of A.
Thus, A’ or Ac = { x : x ∈ U and x ∉A} = U – A

∴ x ∈ A’ ⇔ x∉A

The complement of the set A is shown by shaded area in the following Venn diagram.

ALGEBRA OF COMPLEMENT

• A∩A’ = φ
• A ∪ A’ = U
• U’ = φ
• φ’ = U
• (A’)’ = A
• A ⊆ B ⇔ B’ ⊆ A’
• A – B = A∩B’
• B – A = B∩A’
• A – B = B’ – A’
• De morgan’s laws
• (A∪B)’ = A’∩B’
• (A∩B)’ = A’∪B’
• A – (B∪C) = (A– B) ∩ (A–C)
• A – (B∩C) = (A–B) ∪ (A–C)

SOME IMPORTANT RESULTS

1. A Δ B = (A–B) ∪ (B–A) = (A∪B) – (A∩B)
2. A – B = A ⇔ A ∩ B = φ
3. (A–B)  ∪ B = A∪B
4. (A – B) ∩ B = φ
5. A ∩ (B – C) = (A∩B) – (A∩C)
6. A ∩ (BΔC) = (A ∩ B) Δ (A∩C)

(5) and (6) do not hold for union of sets.

7.
8. , where P(A) is the power set of A

VERY IMPORTANT THEOREMS ON CARDINAL NUMBERS

Let A, B, C are finite sets in a finite universal set  U. Then

1. n (A ∪ B) = n (A) + n (B) – n (A ∩ B)
2. n (A ∪ B) = n(A) + n (B) A and B are disjoint non void sets.
3. n (A∪B∪C) = n (A) + n (B) + n (C) – n  (A∩B) – n (B∩C) – n (C∩A) + n ( A∩B∩C)

The results (1) and (3) can be extended to any number of sets.

4. n (A–B) = n (A) – n (A ∩ B) = n (A ∩ B’)
5. n (A Δ B) = n (A) + n (B) – 2 n (A∩B)
6. n(A’) = n (U) – n (A)
7. n (A’∪B’) = n (U) – n (A∩B)
8. n (A’∩B’) = n (U) – n (A∪B)
9. Let n (A) = p and n (B) = q

Then min {n(A∪B)} = max {p,q} and

max {n (A∪B)} = p + q

min { n (A∩B)} = 0 and max {n (A∩B)} = min {p, q}

10. If A1, A2, ......, Am are disjoint sets, then

CARTESIAN PRODUCT OF  SETS

Ordered Pair : A pair of objects, listed in a specific order, is called an ordered pair, for example (a, b) is an ordered pair of two elements a and b, a is called the FIRST ELEMENT and b, the SECOND ELEMENT.

Two ordered pairs (a, b) and (c, d) are equal if any only if a = c and b = d.

Cartesian product of Sets : Let A and B are two non-empty sets. The set of all ordered pairs (a, b) of elements a ∈ A and b ∈ B is called the Cartesian product of sets A and B and is denoted by A × B. Thus A × B = {(a, b) : a ∈A, b ∈ B}

For example :

If A = {1, 2, 3} and B = {a, b}, then

• A × B = {(1, a)}, (1, b), (2, a), (2, b), (3, a), (3, b)}
• B × A = {(a, 1)}, (a, 2), (a, 3), (b, 1), (b, 2), (b, 3)}
• A × A = {(1, 1)}, (1, 2), (1, 3), (2, 1), (2, 2), (2, 3),(3, 1), (3, 2), (3, 3)}
• B × B = { (a, a), (a, b), (b, a) (b, b)}

Note :

1. If at least one of A or B is empty set then A×B = φ
2. A × B ≠ φ iff A ≠ φ and B ≠ φ
3. In general A × B ≠ B × A
4. If A and B are finite sets, then n (A×B) = n (A). n (B)
5. If A and B are non-empty sets and either A or B is an infinite set, then A×B is an infinite set
6. If A = B, then A×B is expressed as A2. Thus A2 = A×A
7. We can also define, in a similar way, ordered triplets. If A, B, and C are three sets, then (a, b, c), where a ∈A, b ∈ B  and c ∈ C, is called an ordered triplet. The Cartesian product of sets A, B and C is defined as

A × B × C = {(a, b, c,) : a ∈ A, b ∈ B, c ∈ C}.

An ordered pair and ordered triplet are also called 2-tuple and 3-tuple, respectively. In general, if A1, A2,.....An are n sets, then (a1, a2,........an) is called an n-tuple where. ai∈Ai, i = 1, 2......., n and the set of all such n-tuples, is called the Cartesian product of A1, A2, .......An. It is denoted by A1×A2×........×An. Thus

A1×A2×.....×An = {(a1, a2,........an) : ai∈Ai, }.

SOME IMPORTANT THEOREMS

1. A × (B∪C) = (A×B) ∪ (A×C)
2. A×(B∩C) = (A×B) ∩ (A×C)
3. A× (B–C) = (A×B) – (A×C)
4. If A and B are two non-empty sets, then A×B = B×A ⇔ A=B
5. If A ⊆ B, then A×A ⊆ (A×B) ∩ (B×A)
6. A⊆ B ⇒A × C ⊆ B×C for any set C
7. A ⊆ B and C⊆ D ⇒ A×C ⊆ B × D
8. (A×B) ∪ (C×D) ⊆ (A∪ C)×(B∪D)
9. (A×B) ∩ (C×D) = (A∩C) × (B∩D)
10. (A×B) ∩ (B×A) = (A∩B) × (B∩A)
11. Let A and B be two non-empty sets having n elements in common, then A×B and B×A have n2 elements in common.

RELATIONS

Let A and B be two non-empty sets. Then a relation (BINARY RELATION) R from A to B is a subset of A×B. That is, R is a relation from A to B ⇔ R⊆A × B

If R ⊆ A×A, the R is said to be a relation on A.

If (a, b) ∈R, then we write aRb and we say a is R related to b. Thus,  (a, b) ∈R ⇔ aRb.

If , then we say that a is not related to b.

Example :

• If A = {3, 5} and B = {2, 4}, then A× B = {(3,2), (3,4), (5,2), (5,4)}

Let  R be a relation “is greater than” from A to B,

That is aRb ⇔ a > b, a ∈ A, b ∈ B

Then, 3R2, 5R2, 5R4

∴ R = {(3,2), (5,2), (5,4)}. Clearly

The visual representation of a relation is an arrow diagram as shown below:

• If A = {2, 3, 5, 6} and R be a relation “divides” on A that is aRb ⇔ a divides b then 2R2, 2R6, 3R3, 3R6, 5R5, 6R6

∴ R = {(2,2), (2,6), (3,3), (3,6) (5,5) (6,6} ⊆ A×A

The corresponding arrow diagram is as follows :

DOMAIN  AND  RANGE  OF  A  RELATION
